Urban planners have invested a lot of energy in the idea of transit-oriented developments (TODs). Developing dense housing near rail stations with mixed land uses and better walkability is intended to encourage people to walk, bike, and take transit instead of driving. But TODs can also be expensive, largely because rail itself is expensive. In one study, the average cost for light rail construction was $61 million per mile in 2009 dollars.

If rail access does reduce driving and the environmental problems caused by driving, then expensive rail investments may well be worthwhile. But the actual impact that TODs have on driving remains open to debate. Many studies have shown that households living near rail stations are more likely to use transit than other households. But using transit more is not the same as driving less. And even if people in TODs do drive less than people elsewhere, we cannot be sure that transit was responsible. Easy access to a rail station might encourage people to walk rather than drive—but so too might wider sidewalks, narrower streets, and closer destinations. Denser places also tend to have worse traffic and fewer places to park. In other words, TODs might discourage driving not by making rail travel easy, but by making driving less attractive. If this is the case, TODs may not need their “T” at all. The key to less driving in TODs may not be the presence of rail, but other factors like higher density, greater walkability, and less parking.

TODs may not need their “T” at all. The key to less driving in TODs may not be the presence of rail, but other factors like higher density, greater walkability, and less parking.

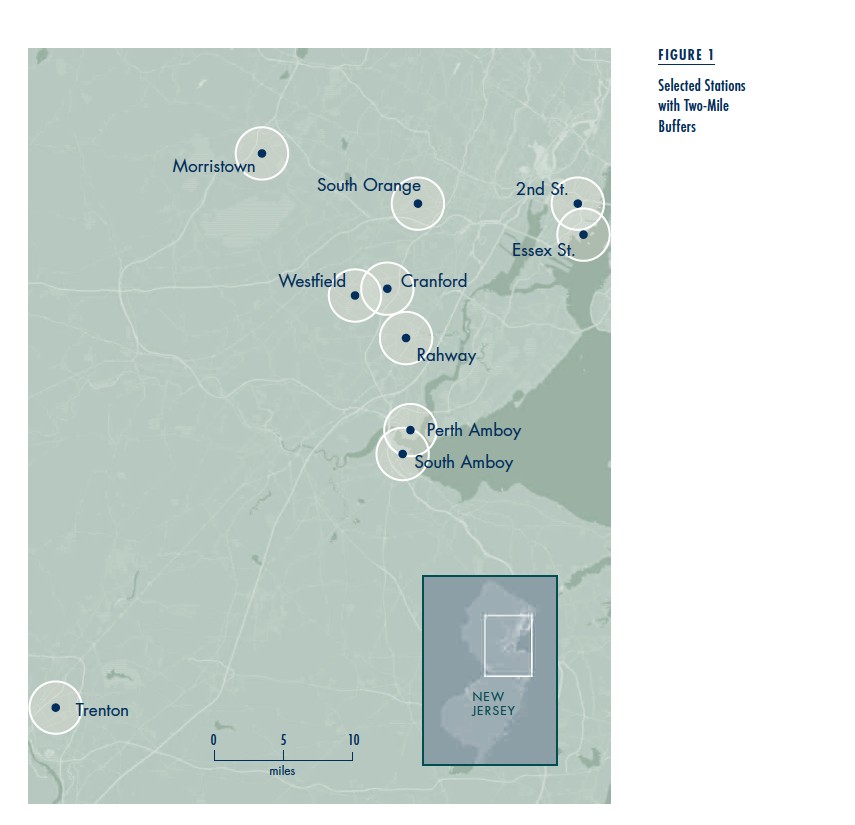

There are few studies of whether people living in TODs own fewer cars and drive less than people living outside TODs. More than half of those studies found that rail access is associated with lower auto use. But usually the studies did not account for other important TOD characteristics, particularly parking availability. Extending on this prior research, how can we isolate rail transit’s influence on travel behavior and separate it from the influence of other attributes of TODs? To help answer this question, I conducted a mail survey of households within a two-mile radius of ten rail stations in New Jersey (Figure 1). Some of the households lived in purpose-built TODs and some didn’t, some lived in newer housing and some in older housing, and some were near rail while others were farther away. The selected stations provide excellent transit access to Manhattan through a mix of light rail, heavy rail, and high-frequency commuter rail service. My survey collected information on housing characteristics, on- and off-street parking, work and non-work travel, household characteristics, and residential location preferences. In addition to the household survey, I included existing neighborhood attribute data, as well as on-street parking data collected by on-foot observers.

Household Differences by Distance to Rail

About 1,100 people responded to the survey; half lived within walking distance of rail stations (defined as a walk of 0.4 miles or less), and about 30 percent lived in new housing (defined as housing that was less than seven years old). Respondents living in new housing within walking distance of rail stations reported lower auto ownership, less auto commuting, and fewer weekly vehicle grocery trips than those living in new or older housing farther away.

These differences, however, may not be solely or even mainly due to rail access. A number of other factors associated with proximity to rail and age of housing may affect auto ownership and use. For example, both rental housing and smaller housing units may attract households who drive less because they are younger, earn lower incomes, or have fewer children. Respondents who lived in new housing near rail were much more likely to be renting and living in smaller units. Off-street parking was less available in new housing near rail than in housing farther away, although newer units had more on-street parking available. In addition, population density for both old and new housing near rail was much higher than new housing farther from rail. And in this sample, bus service was highest in new housing near rail because there was a substantial amount of new housing development in established urban centers.

Does Rail Access Reduce Auto Ownership?

To investigate these potential alternative explanations, I first estimated how auto ownership related to the household’s distance to rail and the age of the house. When I looked at the simple relationship between rail access and auto ownership, ignoring other factors, each additional mile farther away from rail increased auto ownership by an average of a tenth of a car per mile. Living in a new house near a rail station was associated with 27 percent lower auto ownership per person compared to new housing away from rail.

These relationships, however, were misleading. Once I controlled for housing type, parking availability, population density, bus availability, and other built environment measures, the results were striking. Neither rail proximity nor housing age was an independently significant predictor of auto ownership. What was important? First, off-street and on-street parking were both highly predictive. Households with fewer than one off-street parking space per adult had 0.16 fewer vehicles per adult. Households with both low on- and off-street parking availability had 0.29 fewer vehicles per adult. The other significant variable was the number of bus stops within a mile of the home—a measure of general transit accessibility. Doubling the number of bus stops within a mile radius around the average home was associated with 0.08 fewer vehicles per adult. When the effects of more bus stops and low on- and off-street parking availability were combined, they reduce auto ownership by 44 percent. Most of this effect is due to parking availability. When all of these other factors were considered (bus access, parking availability, job and population density, and housing type), rail access had no effect on auto ownership.

fig1

What about Driving to Work?

I carried out a similar analysis for the share of respondents who said they drove alone to work. When I controlled for other factors, the apparent effect of rail access on auto commuting vanished entirely. Instead, off-street parking, job density, bus stop density, and distance to downtown were all highly predictive. Scarce off-street parking (having less than one parking space per adult in the household) was associated with a 40 percent reduction in auto commuting, while a 25 percent increase in bus stop density was associated with a 5 percent reduction in auto commuting. Each additional mile from the central business district was associated with a 2 percent increase in auto commuting. And an increase of 1,000 jobs within a half-mile of home was associated with a 1 percent reduction in auto commuting.

How about Grocery Visits?

Buying groceries is one of the most common trip purposes. Thus I also estimated how rail access and other TOD characteristics affected the frequency of car trips to buy groceries. Again, when controlling for parking supply, housing, and built environment characteristics, neither housing age nor walking distance to rail showed any association with the frequency of auto grocery trips. What was important? The number of grocery stores nearby, the job density and bus stop density near the home, the home’s distance to downtown, and the parking. Each additional grocery store within a quarter mile of the home reduced the number of auto trips for groceries by about 5 percent. Households with both scarce on- and off-street parking took substantially fewer auto-based grocery trips, a reduction of about 25 percent. Note that neither on-street nor off-street parking was independently significant. This makes sense, because carrying groceries is inconvenient on foot or via transit, so only significant impediments to auto ownership and use are likely to make a difference.

Conclusions

Developing high-density, mixed-use housing near rail stations may reduce traffic congestion and auto pollution, slowing the growth of greenhouse gas emissions caused by cars. But there is a huge caveat: those benefits may not depend much on rail access. In this study, lower auto ownership and use in TODs was not from the T (transit)—or at least, not from the R (rail). What does reduce car ownership and use? Lower parking availability, better bus service, smaller housing units, more rental housing, more destinations within walking distance, better proximity to downtown, and higher population and employment density all reduce car ownership and use. When controlling for these other factors, rail was not significant except in one limited but important case: when combined with low parking, rail did reduce automobile ownership but even then it did not reduce automobile trips for commuting or grocery trips.

Though rail service undoubtedly attracts auto users in a way that buses do not, in some contexts it may also siphon off bus riders, walkers, and bikers. To test this hypothesis in the case of the commute to work, I estimated additional commute mode regressions. Controlling for other factors, rail station distance was positively correlated with rail commuting, but negatively correlated with other forms of commuting (such as by bus, walking, biking, or taking the ferry). Rail station distance was also negatively correlated with working at home. In other words, rail does not seem to draw its users from the ranks of auto commuters. This helps explain why rail access doesn’t seem to affect auto use and why it affects auto ownership only in combination with other factors like scarce parking.

What does this mean for policy? Developers are aware that public opposition is often lower near rail stations, and policy makers and urban planners believe that rail access will mitigate traffic impacts. But such a policy will not improve long-term sustainability when rail investments and rail-proximate housing, in and of themselves, make little difference in auto ownership and use.

Current sustainability policies are often focused on investing in rail and developing housing near rail stations. Take California Senate Bill 375, a widely observed and admired attempt to incorporate climate planning in regional transportation and land use planning. SB 375 gives special consideration to “transit priority projects,” which are dense housing developments located within a half-mile of a major transit station or high-quality transit corridor. But focusing primarily on TODs to reduce greenhouse gases could be a great mistake. A better strategy would be to provide incentives for building smaller rental units with less on- and off-street parking in locations with better bus service and higher employment density. At the very least, TODs should be developed with less parking. If they are not, they will not reduce auto use.

If access to rail is not a primary factor in reducing auto use, it could be a blessing, not only because rail infrastructure is expensive, but also because the amount of available land near rail stations is limited. That said, allowing higher housing density and scarce on- and off-street parking everywhere could increase congestion if not carefully managed. Negative local impacts cause cities to frown on dense developments and neighbors to protest them. How can urban planners bring about a more widespread relaxation of parking regulations, height limits, floor-area ratios, and the general plans that restrict the form and location of development and redevelopment? This planning puzzle deserves our focused attention. The pursuit of rail-oriented development may be a distraction from it.


This article is adapted from “Does TOD Need the T? On the Importance of Factors Other Than Rail Access,” originally published in the Journal of the American Planning Association.


Further Readings

Daniel G. Chatman. 2013. “Does TOD Need the T? On the Importance of Factors Other than Rail Access,” Journal of the American Planning Association, 79(1): 17–31.

Daniel G. Chatman, Robert Cervero, Don Emerson, Emily Moylan, Ian Carlton, Dana Weissman, Joe Zissman, Erick Guerra, Jin Murakami, and Paolo Ikezoe. 2014. “Making Effective Fixed-Guideway Transit Investments: Indicators of Success. Volume 1: Handbook, Volume 2: Research Report,” Transit Cooperative Research Program Report 167, Transportation Research Board.
